COMMERCIAL HEATING 70-1600kW

THE NEXT GENERATION OF BOILERS

This new boiler was not only developed to excel technically, but also from a practical perspective, ensuring operation and servicing is simple. Easy access to all components is possible from the front of the boiler. Thanks to the 'dual heat exchanger' design, the XL boilers have built-in redundancy, creating a cascade system within one boiler.

Easy access to all components is possible from the front of the boiler, while two built-in modulating pumps reduce installation time and costs. For long term durability and consistent heat transfer over its lifetime, the XL also utilises a stainless steel heat exchanger to maximise efficiency and further reduce emissions.

EFFICIENT & LOW LIFETIME COSTS
  • HIGH RELIABILTY
  • HIGHEST EFFICIENCY
  • HIGHLY COST COMPETIVE
  • LOWEST CO/NOx EMISSION

ATAG AND THE HEATING OF COMMERCIAL PROPERTIES

The XL boiler is the outcome of  comprehensive R&D and the use of highest quality components. This results in a boiler, which features up to two heat exchangers capable of operating independently. Thanks to this 'dual heat exchanger' design, both XL W and XL F have built-in redundancy – creating a cascade system within one boiler.

WALL HUNG & FLOOR STANDING

XL W WALL HUNG


Boiler range, suitable for an extensive range of commercial heating systems, delivering high power in a small footprint.

Available in standalone, in-line and back-to-back cascade systems,
up to 1.6 MW.


XL - W | Wall mounted >>

XL F FLOOR STANDING


The floor standing XL is a new approach to boiler design. Flexible thanks to availability in either in-line or back-to-back configurations for up to eight boilers, delivering heat outputs up to 1.6 MW.

 The system include all components necessary to complete the primary heating circuit, inclusive a built-in cascade manager specifically designed for quick, simple and effective installation.


XL - F | Floorstanding >>

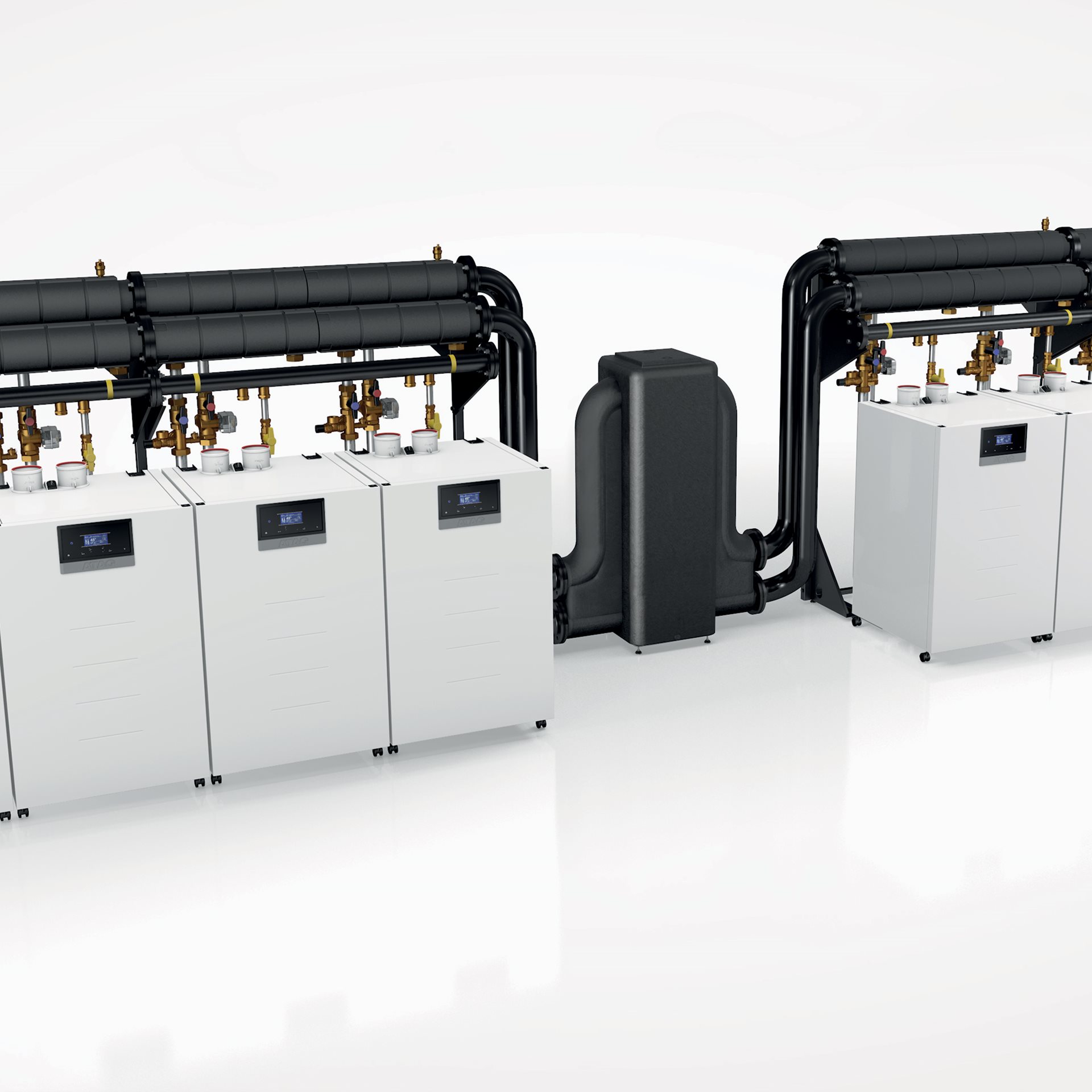

DIFFERENT CASCADE CONFIGURATIONS AVAILABLE

XL W and XL F boilers are quick and simple to install with multiple configurations possible. This ensures they are perfect for a wide range of plant rooms, especially where space is at a premium.

With options for wall mounted and floor standing both free standing in-line and back-to-back arrangements, the boilers offer a variety of modular installations.


Cascade >>

Want to know more about this range?

Please leave your details below and we will get back to you as soon as possible.

afbeelding

CONNECTIVITY AND MONITORING

The XL allows easy integration with well-established building management systems (BMS), further optimising the overall system efficiency and is compatible with common protocols used in building automation such as Modbus and KNX.

ENERGY SAVING
By remotely monitoring and adjusting the XL boiler range on a daily basis, heating schedules are optimised and energy costs are reduced.

CASCADE MANAGEMENT
Cascade management up to 8 boilers - without need for an external controller - is inclusive, as are built-in controllers for connection and monitoring multiple heat sources.

DESIGNED FOR INTEGRATION
ATAG tests and optimises all products to ensure they integrate easily and effectively.

afbeelding

ATAG XL SERVICES

As a specialist partner, you can rely on our boiler expertise, from planning right through to servicing and maintenance. Our specially trained technicians are available to help with the commissioning and maintenance of commercial boilers — offering their experience and assistance.

Our engineers always work together with you in commissioning the boiler properly to achieve maximum effciency and service life.

afbeelding

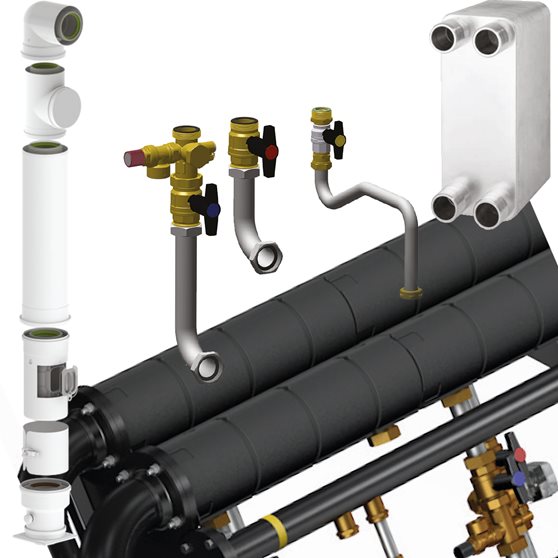

ATAG XL ACCESSORIES

ATAG XL offers a wide range of choices for commercial heating applications, thanks to the wide range of available accessories.

  • Flue gas systems

  • Room controls

  • Cascade sets and frames

  • Connectivity systems

  • Low loss headers

  • LPG conversion

  • Plate heat exchangers

  • Hydraulic sets

  • Insulation packages
