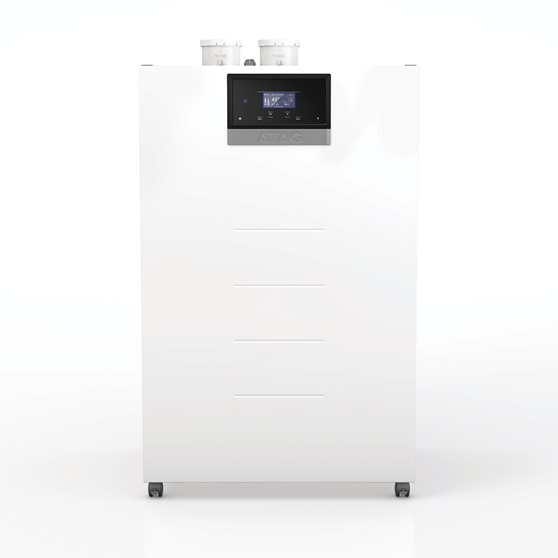

XL F FLOOR STANDING

Utilising advanced engineering capabilities, ATAG XL F is  the next generation of boilers, offering powerful and durable performance,  flexible installation and simple maintenance.

Built-in back-up
Thanks to the 'dual heat exchanger' design, the XL boilers have built-in redundancy, creating a cascade system within one boiler.
The two heat exchangers are capable of working independently from each other, ensuring that a system is never left without highly efficient heating.



FLOOR STANDING RANGE >>
EFFICIENT & LOW LIFETIME COSTS
  • HIGH RELIABILTY
  • HIGHEST EFFICIENCY
  • HIGHLY COST COMPETIVE
  • LOWEST CO/NOx EMISSIONS

PLUG & PLAY


By integrating main components within the boiler, such as the pump and non return valves, installation time, costs and space required are all significantly reduced.

Thanks to the new HMI (Human Machine Interface) and a wide range of accessories, quick installations and commissioning become very simple.

With the backpack solution , single boilers can be equipped with  a low loss header or plate heat exchanger to further optimize easy installation.

High efficiency and low emissions

  •  Seasonal efficiency > 93%
  •  NOx emissions GCV <24mg/kWh
  •  High output per m²
Robust and durable
  • 2 BREEAM Credits according to BREEAM UK New Construction 2018
  • Stainless steel heat exchanger iCon XL
  • Output 70-1600kW (cascade)
  • High modulation range of up to 1:10
  • NOx emissions undercut EU limit by 60%
Low heat loss and noise emissions

Cascade-in-cascade

  • Independently working heat exchangers
  •  Integrated cascade manager
Intelligent controls

Plug & Play
  • Compact dimensions
  • Simple to service
  •  Integrated non-return valve(s)
  • for both water and flue
  •  Built in high efficiency pump(s)
Cargo wheels for easy positioning



3-ZONE TECHNOLOGY

By combining the highest quality materials and improved design, based on 30 years of heat exhanger experience, the ATAG XL F delivers with the new iCon XL heat exchanger excellent efficiencies during the lifetime of the boiler, as well as low maintenance schedules.

Specially designed smooth tubes ensure direct heat transfer, plus a down-firing arrangement avoids pollution of the heat exchanger. The three combustion zones minimise formation of NOx and CO. Even, the NOx emissions undercut the EU limit by 60%.

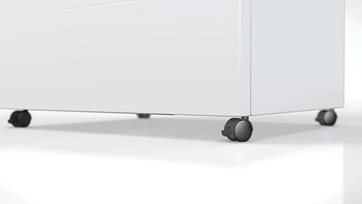

EASY MANOEUVRING ON SITE

Integral cargo wheels, which are height adjustable and can be locked into position, allow the XL F to be easily  manoeuvered into position.

EASY CONNECTION

Built-in as standard, a non-return valve allows easy connection of the flue system, without loss of residual fan pressure.

CONFIGURATION POSSIBILITIES

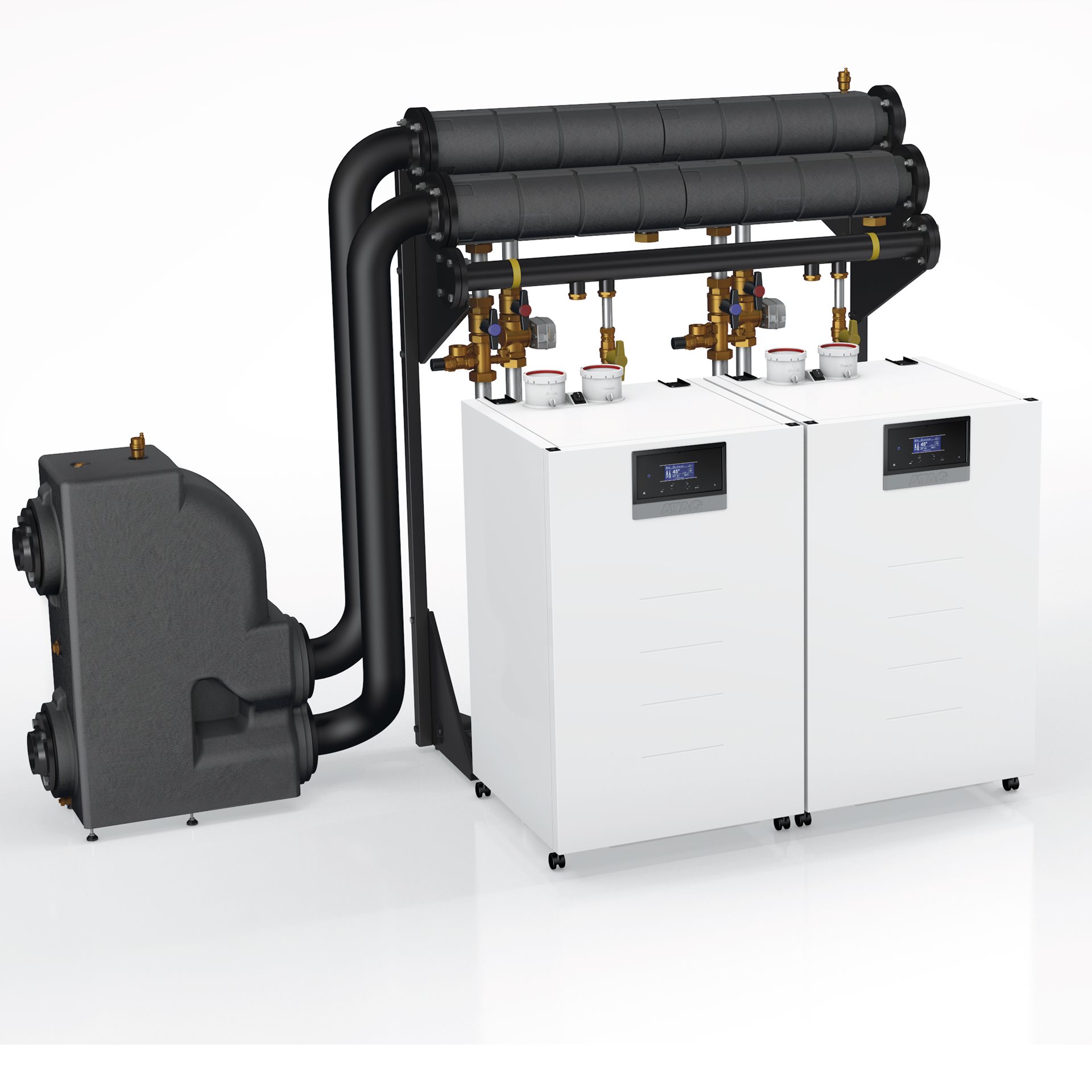

CASCADE


XL W and XL F boilers are quick and simple to install with multiple configurations possible. This ensures they are perfect for a wide range of plant rooms, especially where space is at a premium.
With options for wall mounted and floor standing both free standing in-line and back-to-back arrangements, the boilers offer a variety of modular installations.


Cascade >>
afbeelding

LOW MAINTENANCE  FREQUENCY

A benefit of the XL design is the downfiring burner, which further prevents contamination, while acting as an insulator above the heat exchanger. The design of the  heat exchanger  allows for a low maintenance frequency up to every
4 years or 16,000hrs.

afbeelding

LIGHTWEIGHT MATERIALS

By utilising the latest lightweight materials, ATAG XL can be easily commissioned and transported on site.

Thanks to its stainless steel heat exchanger, there are no compromises on durability and robustness. In addition, its low water content design and advanced co mbustion technology facilitate rapid heat transfer and extremely high efficiencies

afbeelding

CONTROLL BOX

The XL allows easy integration with well-established building management systems (BMS), further optimising the overall system efficiency and is compatible with common protocols used in building automation such as Modbus and KNX.

afbeelding

HEAT AND NOISE INSIDE

A completely expanded polypropylene insulated body encases the boiler to keep heat loss to an absolute minimum for improved boiler efficiency. Besides this the high quality casing minimises noise emissions to industry leading standards.
