ATAG XL180W

The new range of technologically advanced, high efficiency gas boilers for medium to large commercial properties. Boasting exceptional levels of quality and performance for which ATAG Commercial is renowned, the new boilers offer greater flexibility in terms of installation, as well as ease of maintenance. ATAG's largest output System boiler with a cascade of up to 1600kW. This System boiler is designed to efficiently heat commercial properties with the possibility of providing domestic hot water via aditional components. It can be used in cascade arrangements of up to 8 boilers.

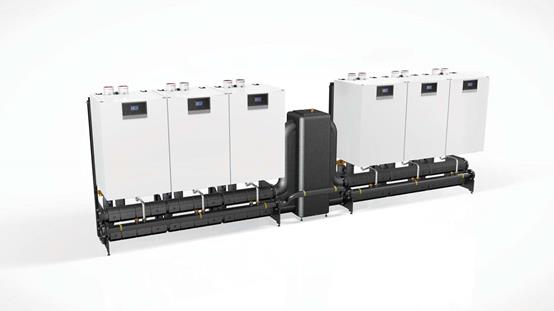

  • Significantly reduced installation times. Can be installed in-line or back-to-back as wall mounted or free standing cascade arrangements.
  • Low installation height of 1.8m (not including the flue).
  • When fitted in cascade, these boilers have the smallest, most compact footprint (in terms of width) in the industry.
  • Stainless Steel Heat exchangers for high efficiency over the entire lifetime of the boiler
  • Integral modulating ‘A’ rated pump constantly sending feedback on its operation status to the boiler
  • Double engine model
  • Modulation range of XL180W 1:10

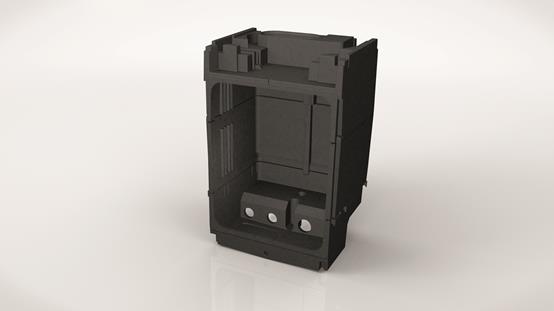

  • Come as standard with a high quality insulation that keeps the heat loss to an absolute minimum for improved boiler efficiency and minimises noise emissions to industry leading standards.
  • Built-in cascade controller and timer

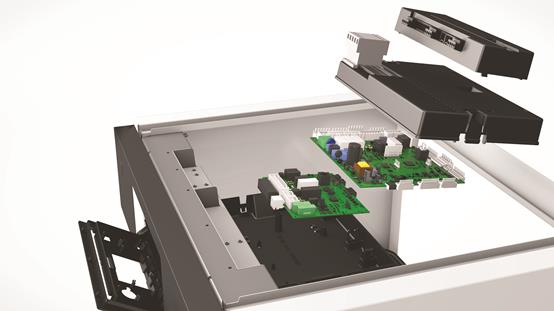

  • Control panel positioned at the top of the boiler to guarantee maximum durability of the electronic components and easy access to all boiler parameters
  • Easy plug & play BUS communication cable for cascade arrangements
  • Optional additional gateways available for BACnet, KNX, LONbus and MODbus protocols.
  • Low energy consumption
  • 7 year boiler warranty including parts and labour *
foto-1

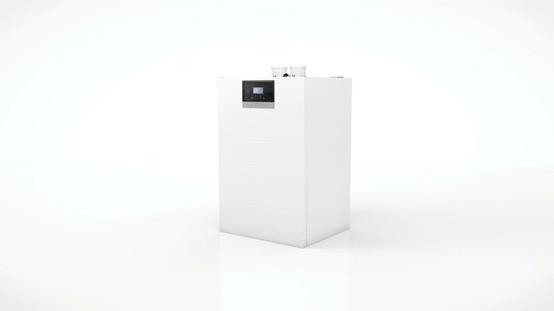

ATAG XL wallhung

Description

Peace of Mind

The use of durable materials and the new iCon XL stainless steel heat exchanger brings excellent efficiencies during the lifetime of the boiler and results in low maintenance schedules.

High Efficiency

The ATAG XL W boiler stays at a consistently high level of efficiency during the entire lifespan of the boiler thanks to the stainless steel heat exchanger. Gross seasonal efficiency up to 96.5% (in accordance with equation 2 in the Non-Domestic Building Services Compliance Guide)

Low emissions

Specially designed smooth tubes ensure direct heat transfer and the down-firing arrangement together with the three combustion zones inside the heat exchanger minimises the formation of NOx and CO. The NOx emissions for all the boilers in the XL W range are below 24 mg/kWh (EN15502). The new range of boilers achieves the maximum BREEAM credits in accordance with the BREEAM UK New Construction 2018.

Reliability

Sustainability and stainless steel go hand in hand. Stainless steel does not rust and will not wear. After 15 years, just as economical as on the day of purchase.

Built-in backup

By utilising dual heat exchangers that operate independently from one another, these models effectively work as an internal cascade. What’s more, should one heat exchanger require replacement or repair, the other is still fully operational, ensuring a system doesn’t completely lose heat during maintenance or servicing.

The ATAG XL-Series: Reliable & Efficient

Compact
Comfort

Fully modulating control system which accurately maintains the desired comfort conditions

Compact
Environmentally friendly

Very low emissions and therefore low environmental impact

Compact
Economical

High efficiency. This is how you save on your energy bill. For years!

Compact
Reliable

Standard extended warranty

Specifications

Application System boiler
Depth 675 mm
Flue / Air intake Concentric
Gas inlet pressure min/max nat. gas G20: 17/25 mbar
Gas type G20
Height 1050 mm
LWA Sound power level, indoors 67 dB
Weight boiler (empty) 132 kg
Width 690 mm
