XL CASCADE

ATAG XL BOILER CONFIGURATION POSSIBILITIES

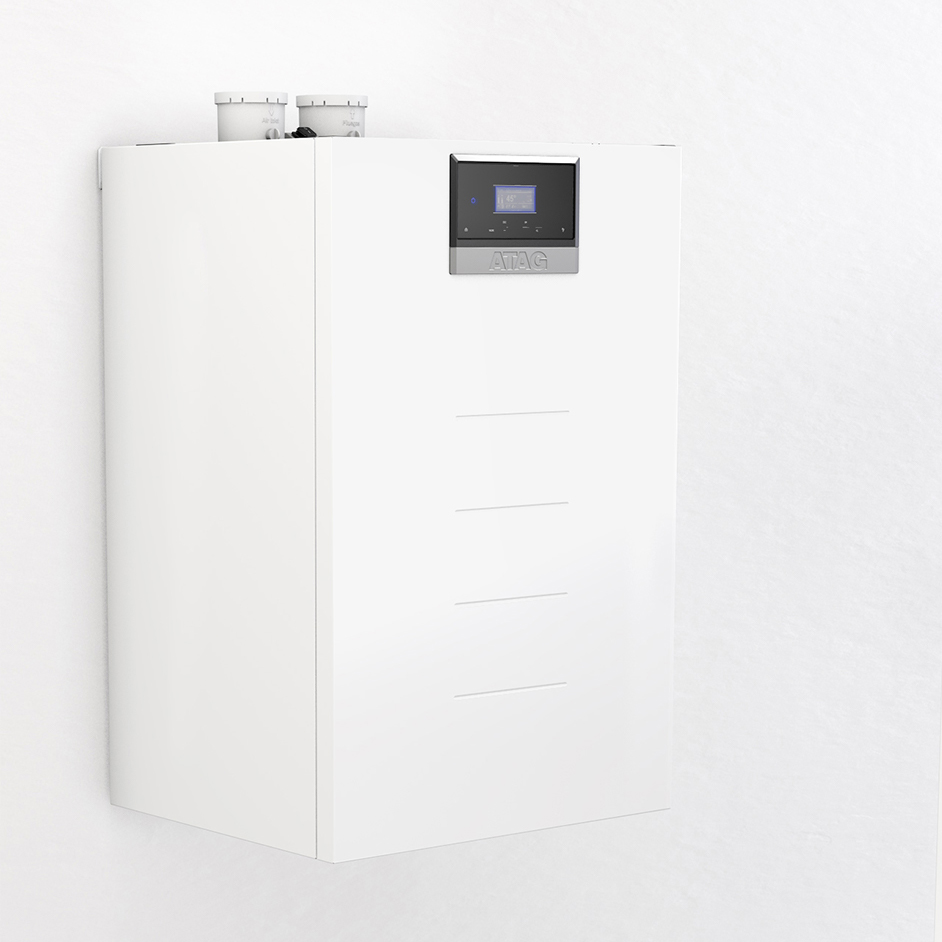

XL W and XL F boilers are quick and simple to install with multiple configurations possible. This ensures they are perfect for a wide range of plant rooms, especially where space is at a premium.
With options for wall mounted and floor standing both free standing in-line and back-to-back arrangements, the boilers offer a variety of modular installations.


Reliable and robust
Robust at heart thanks to the stainless steel heat-exchanger. Main advantage compared to aluminium is  the boiler is four times more corrosion resistant.




EFFICIENT & LOW LIFETIME COSTS
  • HIGH RELIABILTY
  • SUPERB HEATING EFFICIENCIES
  • HIGHLY COST COMPETIVE
  • EXTREMELY LOW CO/NOx EMISSIONS

SERVICEABILITY & PERFORMANCE


The HMI is placed on top at a convenient height of 1.70m and all inner parts are accessible from the front.

The engineering excellence results in keeping the heat and noise inside thanks to the full insulation of expanded propyleen. For even better efficiency rates.

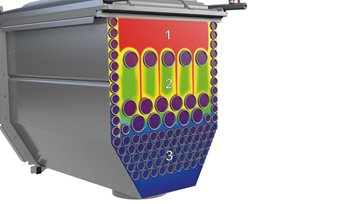

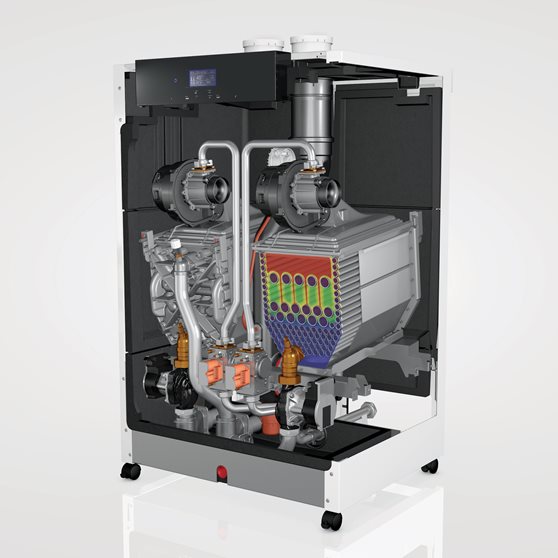

3-ZONE TECHNOLOGY

By combining the highest quality materials and improved
design, based on 30 years of heat exhanger experience, the ATAG XL F delivers with the new iCon XL heat exchanger
excellent efficiencies during the lifetime of the boiler, as well as low maintenance schedules.

Specially designed smooth tubes ensure direct heat transfer, plus a down-firing arrangement avoids pollution of the heat exchanger. The three combustion zones minimise formation of NOx and CO. Even, the NOx emissions undercut the EU limit by 60%.

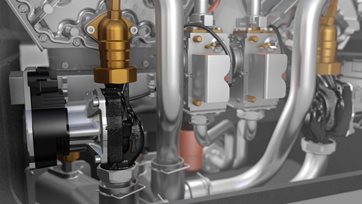

INTELLIGENT INTEGRATED PUMP

Both ATAG XL W and XL F communicate with the
integrated pumps and receive feedback on its operation status. This modulating pump is constantly monitoring the flow rate and  recognizes blockages, preventing damage, guaranteeing optimal working conditions and improving boiler efficiency.

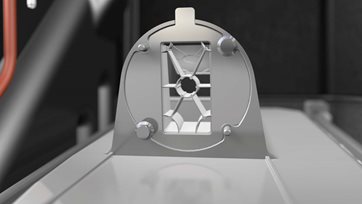

EASY CONNECTION

Built-in as standard, a non-return valve allows easy connection of the flue system, without
loss of residual fan pressure.

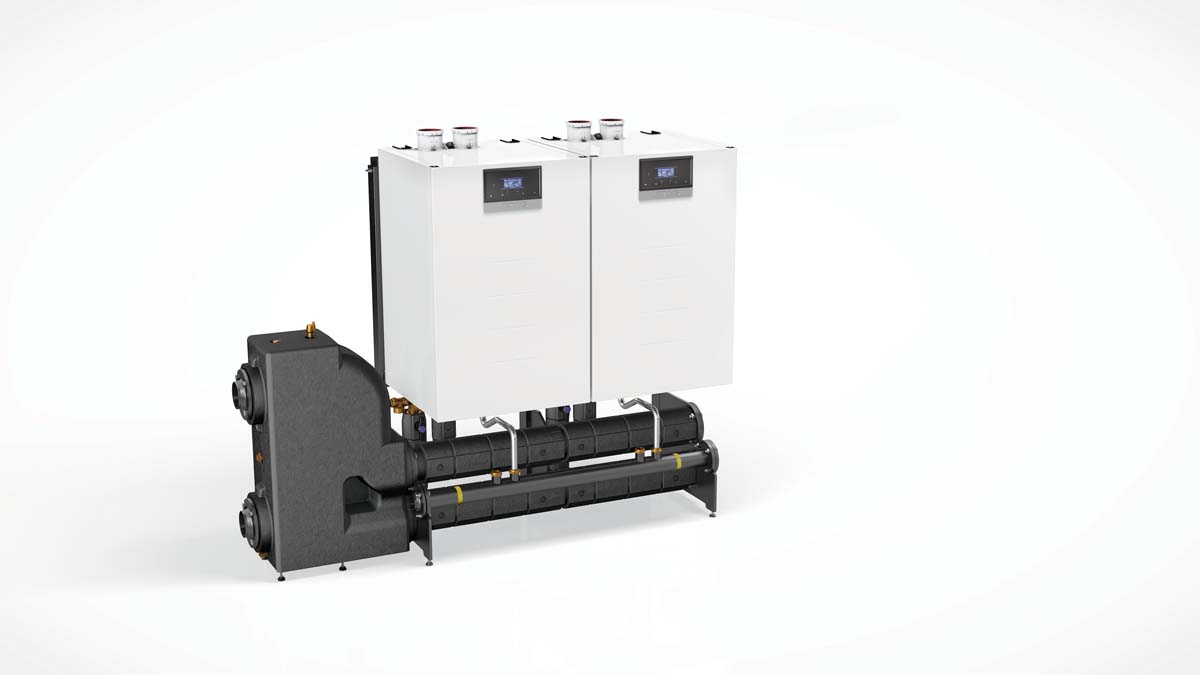

In-line cascade wall mounted
6 in-line

Maximum boilers in cascade 6 in-line
Max. Output 1 Mw
Width (mm) 4230
Heigt (mm) 1700
Depth (mm) 755

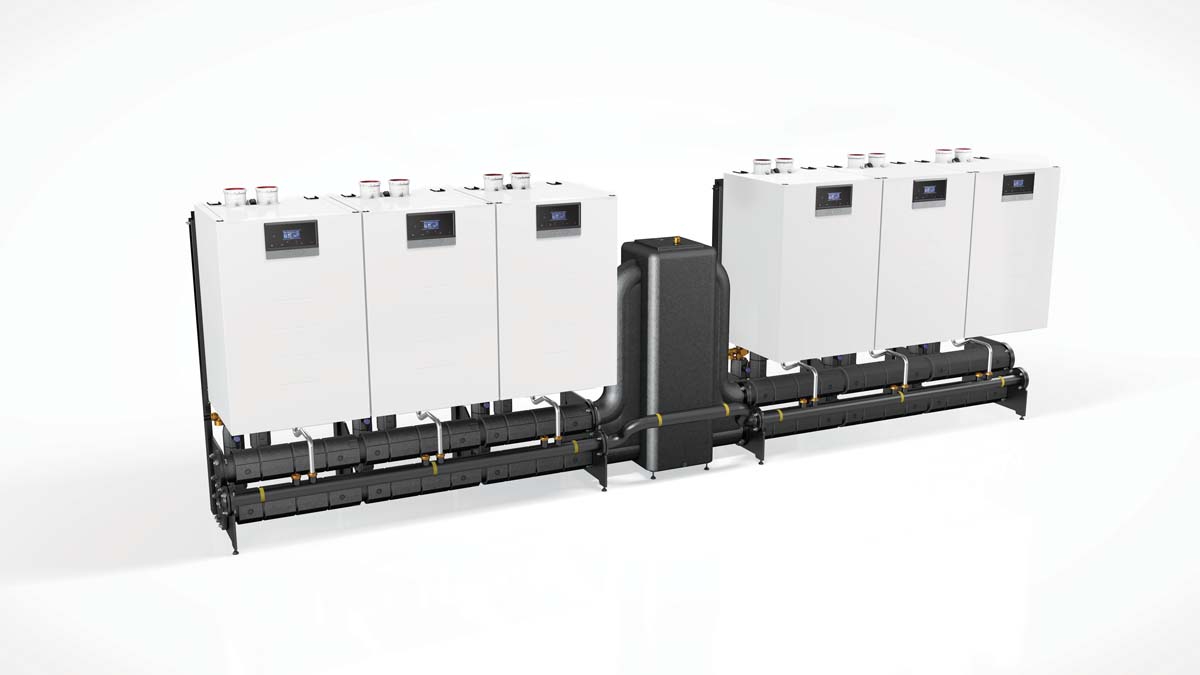

In-line cascade wall mounted
8 in-line DUO

Maximum boilers in cascade  8 in-line DUO
Max. Output 1,6 Mw
Width (mm) 6520
Heigt (mm) 1700
Depth (mm)755 755

In-line cascade wall mounted
4 + 4 B2B

Maximum boilers in cascade 4 + 4 B2B
Max. Output 1 Mw
Width (mm) 2830
Heigt (mm) 1700
Depth (mm)755 1510

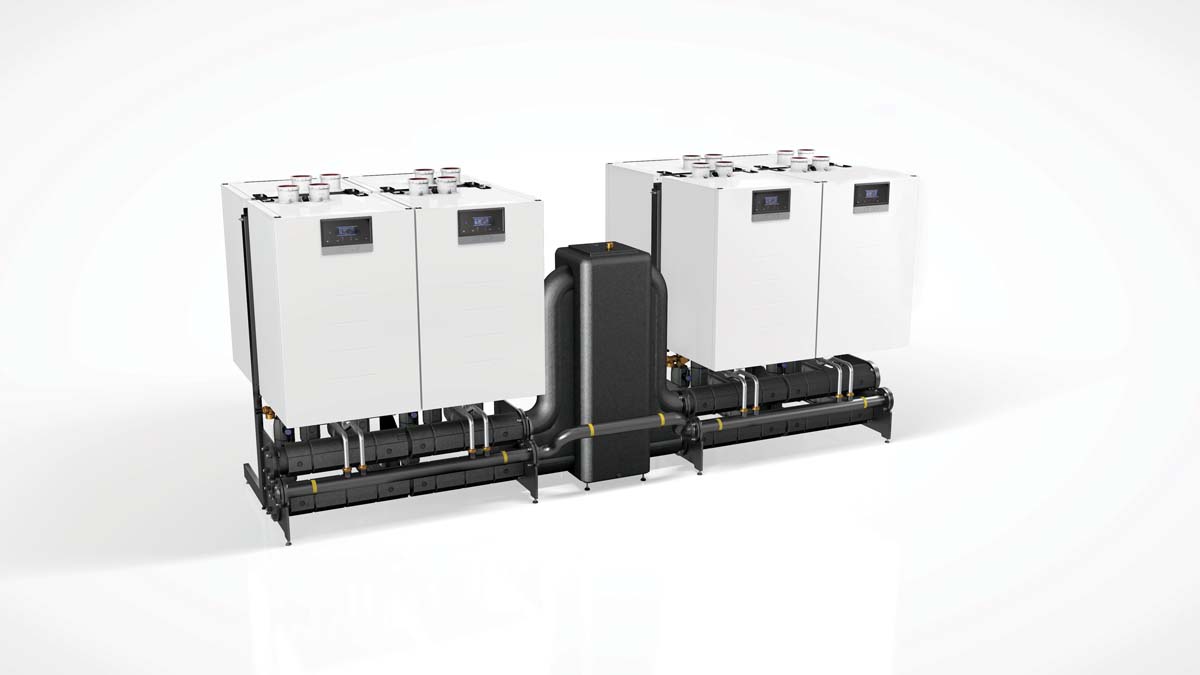

In-line cascade wall mounted
4 + 4 B2B DUO

Maximum boilers in cascade 4 + 4 B2B
Max. Output 1,6 MW
Width (mm) 3880
Heigt (mm) 1700
Depth (mm)755 1510

In-line cascade wall mounted
4 + 4 B2B DUO

Maximum boilers in cascade 4 + 4 B2B
Max. Output 1,6 MW
Width (mm) 3880
Heigt (mm) 1700
Depth (mm)755 1510

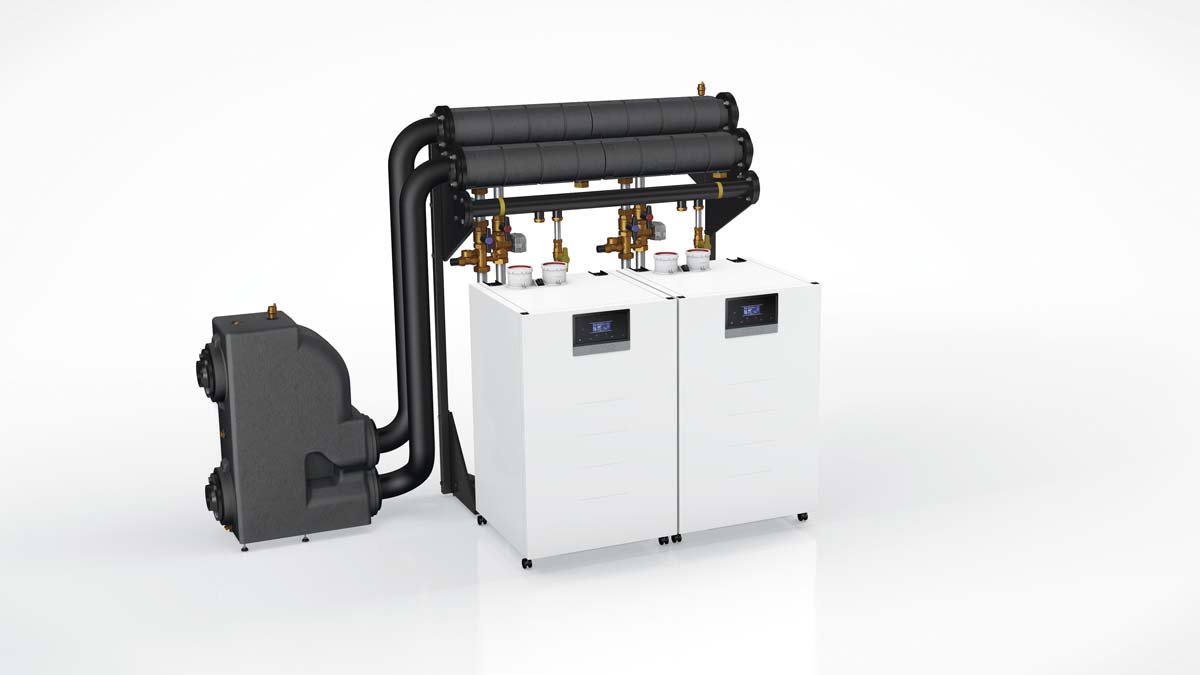

In-line cascade Floorstanding
6 in-line

Maximum boilers in cascade 6 in-line
Max. Output 1 MW
Width (mm) 4230
Heigt (mm) 1700
Depth (mm)755 755

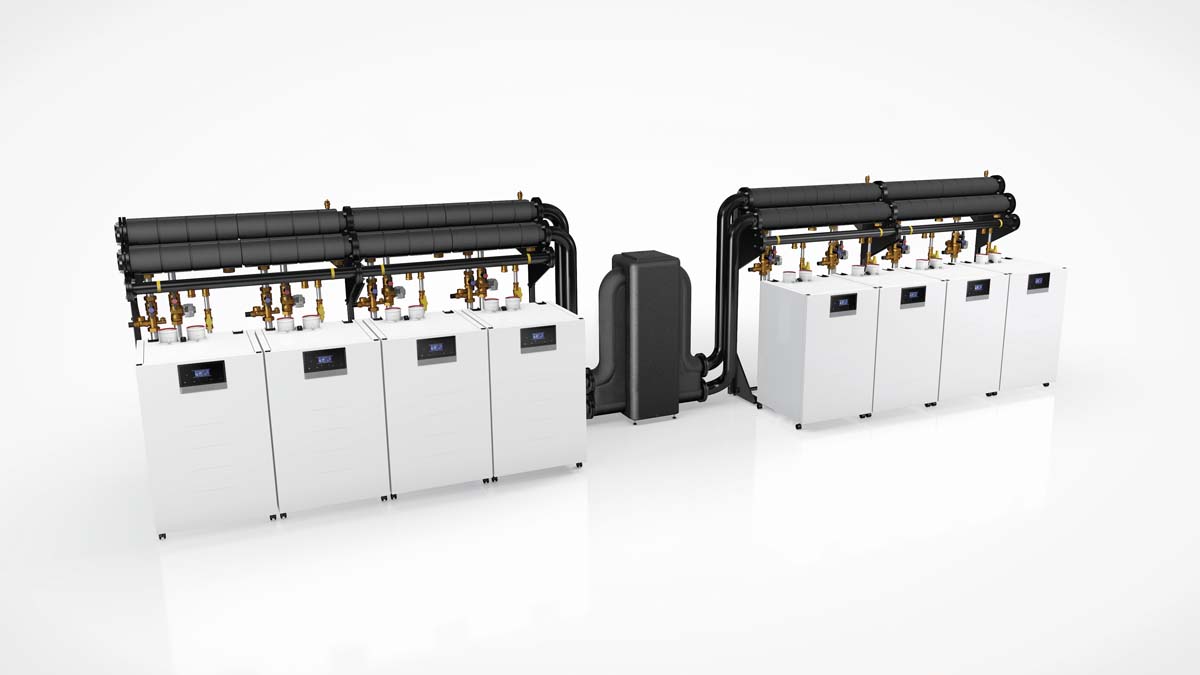

In-line cascade Floorstanding
8 in-line

Maximum boilers in cascade 8 in-line
Max. Output 1,6 MW
Width (mm) 6520
Heigt (mm) 1700
Depth (mm)755 755

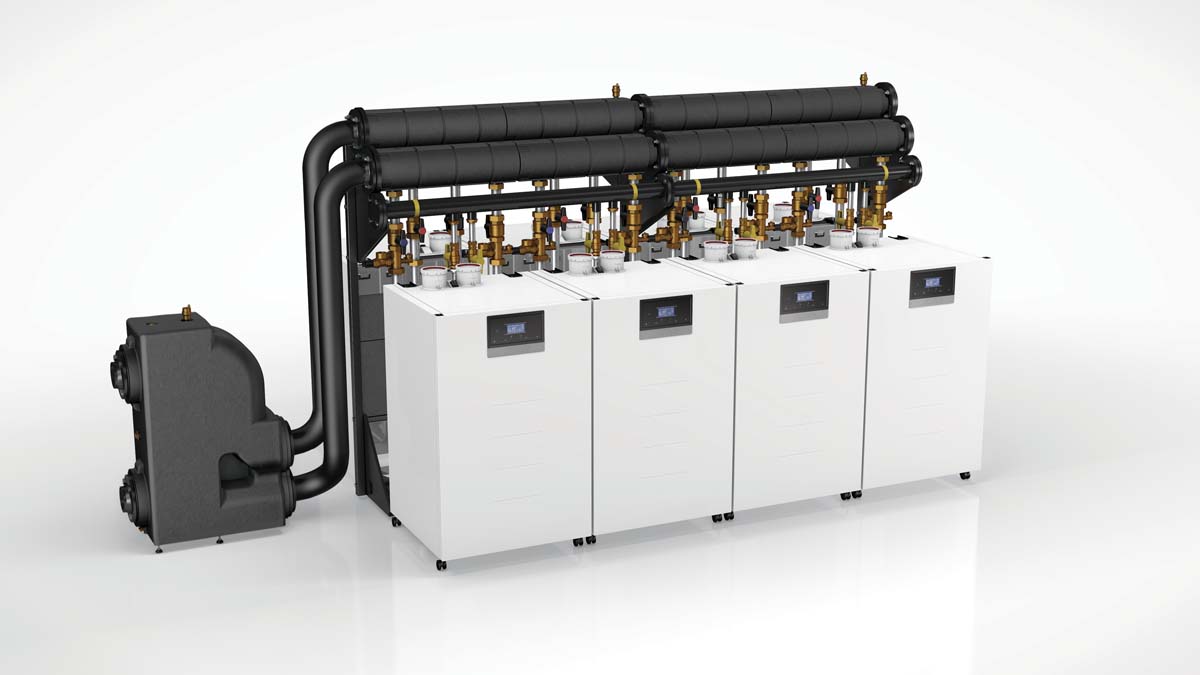

In-line cascade Floorstanding
4 4 B2B

Maximum boilers in cascade 4 + 4 B2B
Max. Output 1 MW
Width (mm) 2830
Heigt (mm) 1700
Depth (mm)755 1510

In-line cascade Floorstanding
4 + 4 B2B DUO

Maximum boilers in cascade 4 + 4 B2B DUO
Max. Output 1,6 MW
Width (mm) 3880
Heigt (mm) 1700
Depth (mm)755 1510

 Flexibility and power combined

  • High output per m²
  • 70-1600 kW (cascade)
  • High modulation range of up to 1:10
High efficiency
  • 2 BREEAM Credits
    according to BREEAM UK New Construction 2018
  • Seasonal efficiency > 93%
  • Low NOx emissions GCV <24mg/kWh
 Low heat loss and noise emissions

Robust and durable

  • Stainless steel heat exchanger iCon XL
Cascade-in-cascade
  • Integrated cascade manager
  •  Independently working heat exchangers
Plug & Play
  • Compact dimensions
  • Easy to service
  • Integrated non-return valves for both water and flue
  • Built in high efficiency pump(s)

CONFIGURATION POSSIBILITIES

XL W and XL F boilers are quick and simple to install with multiple configurations possible. This ensures they are perfect for a wide range of plant rooms, especially where space is at a premium.
With options for wall mounted and floor standing both free standing in-line and back-to-back arrangements, the boilers offer a variety of modular installations.


Cascade

BIM | DWG | RFA of ATAG Cascades

Find the here the cascade BIM + DWG files for the new range of boilers XL F and XL W

MEP content
afbeelding

LOW MAINTENANCE  FREQUENCY

A benefit of the XL design is the downfiring burner, which further prevents contamination, while acting as an insulator above the heat exchanger. The design of the  heat exchanger  allows for a low maintenance frequency up to every 4 years or 16,000hrs.

afbeelding

LIGHTWEIGHT MATERIALS

By utilising the latest lightweight materials, ATAG XL can be easily commissioned and transported on site.

Thanks to its stainless steel heat exchanger, there are no compromises on durability and robustness. In addition, its low water content design and advanced co mbustion technology facilitate rapid heat transfer and extremely high efficiencies

afbeelding

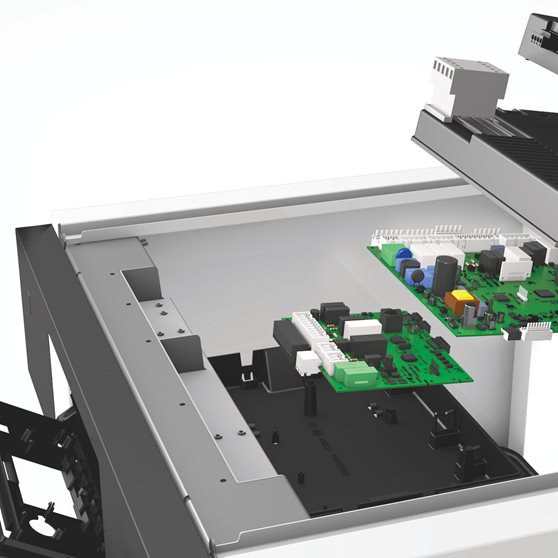

CONTROL BOX

The XL allows easy integration with well-established building management systems (BMS), further optimising the overall system efficiency and is compatible with common protocols used in building automation such as Modbus and KNX.

afbeelding

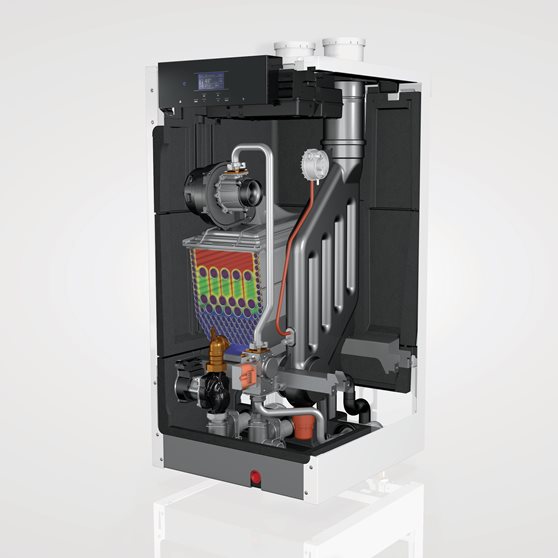

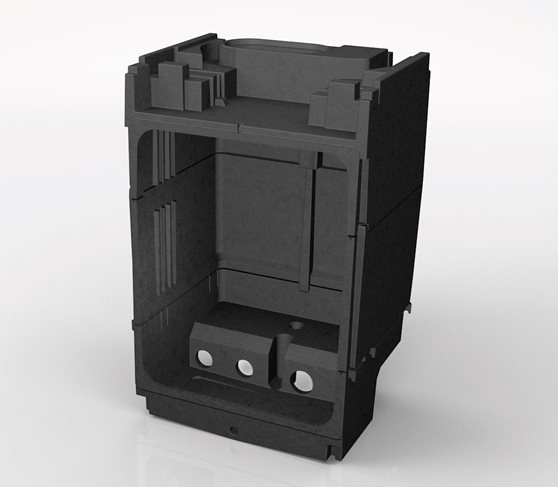

HEAT AND NOISE INSIDE

A completely expanded polypropylene insulated body encases the boiler to keep heat loss to an absolute minimum for improved boiler efficiency. Besides this the high quality casing minimises noise emissions to industry leading standards.
